VR-50HD MK2 ROLAND PROFESSIONAL VIDEO
Mezclador de Audio y Video HD Multiformato con USB 3.0 para Webstreaming y Grabación.
Mezclador de Audio y Video HD Multiformato con USB 3.0 para Webstreaming y Grabación.
Mezclador de Audio y Video HD Multiformato con USB 3.0 para Webstreaming y Grabación.

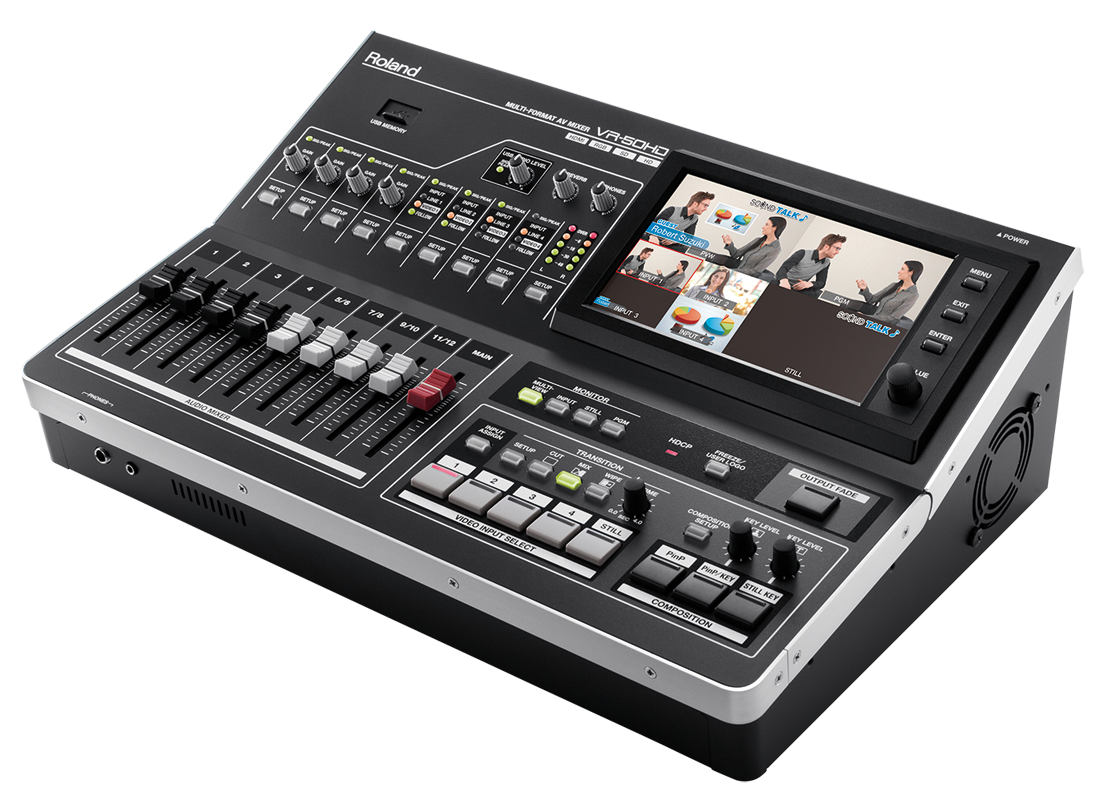

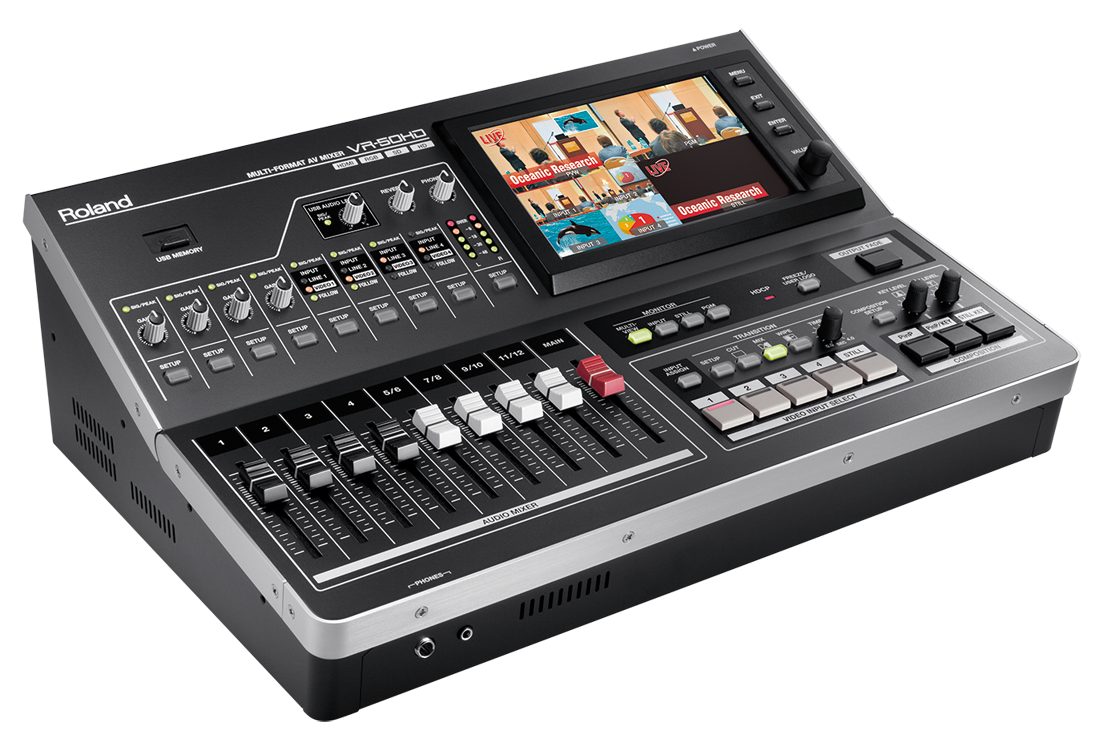

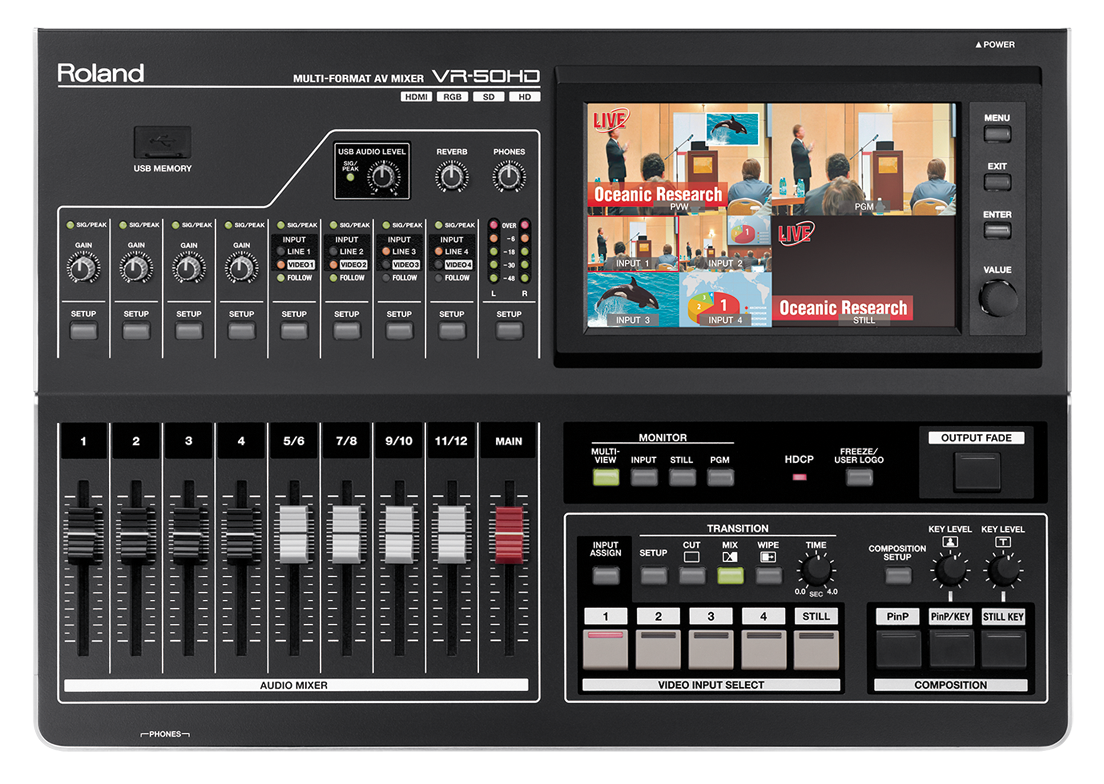

Un estudio HD portátil en una sóla unidad. Un sólo operador maneja audio y vídeo usando faders, botones y la pantalla táctil. El mezclador todo-en-uno Roland VR-50HD integra satisfactoriamente un mezclador de audio, un switcher de vídeo, pantalla táctil multiviewer, y USB video/audio streaming en una unidad autónoma. Este único dispositivo proporciona la funcionalidad que demandan la creciente aparición de fientes de vídeo y audio. Esta solución portátil de produción HD en vivo es ideal para escuelas, iglesias, edificios públicos, eventos corporativos, deportes, trainings o cualquier evento en vivo.
VR-50HD
Video
Processing
4:4:4 (RGB), 10-bit 4:2:2 (Y/Pb/Pr), 10-bit

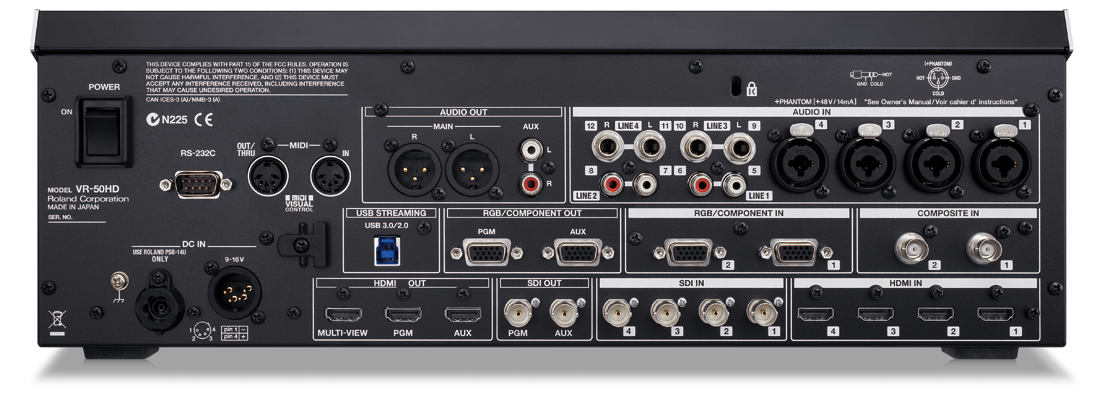

Input Connectors
3G/HD/SD-SDI: BNC type x 4 (INPUT 1--4)
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C. HDMI(DVI-D): Type A(19pin) x 4 (INPUT 1--4)
* HDCP Supported.
Analog RGB/HD-Component: Mini D-sub 15-pin type x 2 (INPUT 1--2)
Analog Video (SD): Composite (BNC type) x 2 (INPUT 1--2)
* INPUT 1-2: Select SDI, HDMI or Analog RGB, Composite using menu.
* INPUT 3-4: Select SDI, HDMI using menu.
Output Connectors
3G/HD/SD-SDI: BNC type x 2 (PGM OUT, AUX OUT)
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C HDMI(DVI-D): Type A(19pin) x 3 (PGM OUT, AUX OUT, MULTI VIEW)
* HDCP Supported
Analog RGB/HD-Component: Mini D-sub 15-pin type x 2 (PGM OUT, AUX OUT)
Input/Output Level and Impedance
Composite: 1.0 Vp-p 75 ohms
Analog RGB: 0.7 Vp-p 75 ohms (H, V: 5 VTTL)
Analog HD: 1.0 Vp-p 75 ohms (Sync-Signal: Bi-Level/Tri-Level)
Supported Video Formats
SDI
480/59.94i, 576/50i, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* Conforms to SMPTE 274M, SMPTE 296M, ITU-R BT.601-5.
HDMI:(*2)
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p 1024×768/60Hz(*1), 1280×720/60Hz(*1), 1280×800/60Hz(*1), 1280×1024/60Hz(*1), 1400×1050/60Hz, 1920x1080/60Hz
HDMI(MULTI-VIEW Output):(*2)
1080/59.94p
Component
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
RGB:(*2)
1024×768/60Hz(*1), 1280×720/60Hz(*1), 1280×800/60Hz(*1), 1280×1024/60Hz(*1), 1400×1050/60Hz, 1920x1080/60Hz
Composite
NTSC, PAL
*Note
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
*2 Conforms to CEA-861-E or VESA DMT Version 1.0 Revision 11.
* The video signal frame rate must match the unit's frame rate setting.
* The output format of HDMI and RGB/Component is always the same.
When a Video format is selected, component signal is output from the RGB/COMPONENT connector.
When a RGB format is selected, RGB signal is output from the RGB/COMPONENT connector.
USB-VIDEO
480/29.97p, 576/25p, 480/59.94p, 576/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p
Still Image
Windows(R) Bitmap File (.bmp) * Maximum 1920 x 1080 pixels, 24-bit per pixel, uncompressed.
Effects
Transition: Mix, Cut, NAM, FAM, Wipe (9 patterns) Composition: PinP, Chrominance Key, Luminance Key Others: Output Fade, Output Freeze, User Logo
Audio
Audio Processing
Sampling Rate: 24-bit/48 kHz
Input Connectors
AUDIO IN (1 to 4) jacks (XLR/TRS combo type)
* XLR type: 1 GND, 2 HOT, 3 COLD
* Phantom Power: DC 48 V (unloaded maximum), 5 mA (maximum load) (Current value per channel).
AUDIO IN (5 to 8) jacks (RCA phono type)
AUDIO IN (9 to 12) jacks (TRS type)
Output Connectors
AUDIO OUT L,R jacks (XLR-3-32 type)
* XLR type: 1 GND, 2 HOT, 3 COLD
AUDIO OUT L,R jacks (RCA phono type)
PHONES jack (Stereo 1/4-inch phone type) (headphones)
PHONES jack (Stereo miniature type) (headphones)
Input Level and Impedance
XLR/TRS: -68 to +4 dBu (Maximum: +22 dBu, 4 k ohms)
RCA phono: -10 dBu (Maximum: +8 dBu, 11 k&
